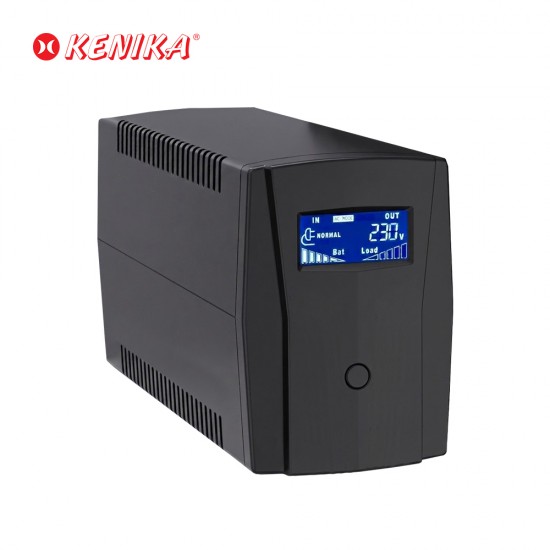

KENIKA UPS KS-700

UPS KS-1 sangat cocok untuk diaplikasikan untuk kebutuhan rumah atau kantor kecil. Selain sebagai backup, UPS Kenika berfungsi sebagai stabilisator tegangan listrik.

FEATURES :

- LCD Display Selectable

- Microprocessor-based digital control

- Boost and Buck AVR for Voltage Stabilization

- Auto sensing frequency

- Wide Input Voltage Range

- Power-on self Test

- Cold Start

- Auto Restart when mains power is restored

SPECIFICATIONS :

Model : KS-700

Capacity : 700VA

Rated Power : 400W

INPUT

Voltage : 220/230/240 : 162-295VAC

Frequency Range : 50 Hz ± 10% (Auto Sensing)

OUTPUT

Voltage : 220/230/240 VAC ± 10%

Frequency : 50 Hz ± 10% (Auto Sensing)

Waveform : Mains Mode: Pure Sine Wave; Battery Mode: Simulated Sine Wave

Transfer Time : Typical 8ms, 10ms Max.

BATTERIES

DC Voltage : 12V

Configuration : 12V 7AH x 1

Recharge Time : 6-8 h

OTHERS

Protections : Short Circuit, Battery Overcharge/Discharge, Overload, Surge

Communicatioons : USB/RS232 (Optional)

Humidity : 20-90% RH @ 0-4°C (Non Condensing)

Noise Level : Less than 45dB

PHYSICAL

Net Weight : 4.3 Kg

Gross Weight : 5 Kg

Unit Dimension : 100 x 290 x 1140 mm

Package Dimension : 1139 x 335 x 140 mm
