- Stock: In Stock
- Model: KLW 5100
- Weight: 49.00kg
- Dimensions: 66.00cm x 45.00cm x 24.00cm
More from this brand

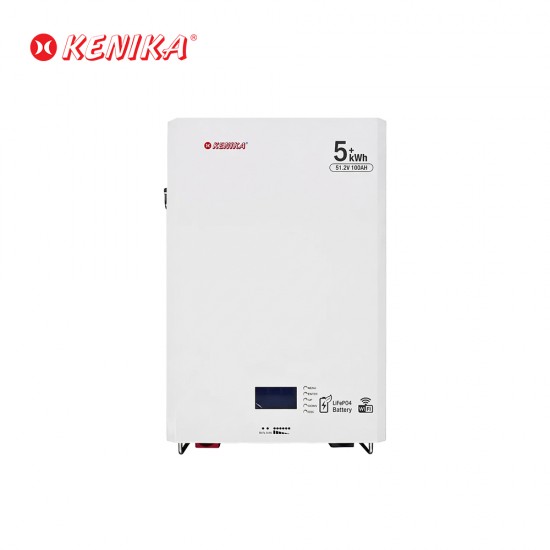

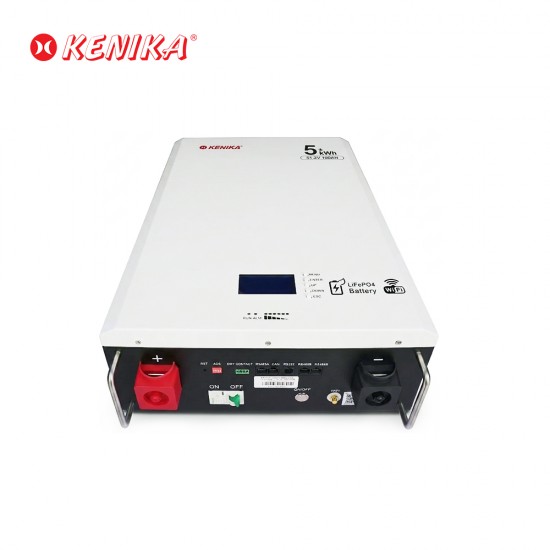

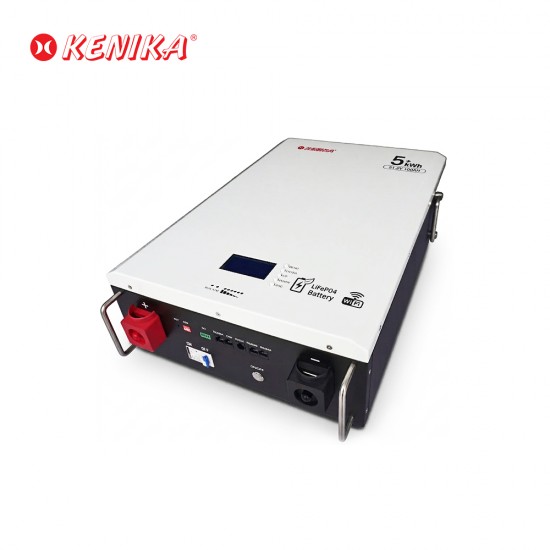

Kenika KLW 5100 Wallmounted Lithium Battery Pack menghadirkan penyimpanan energi yang efisien dengan kapasitas 5.12 kWh. Produk ini memiliki desain ramping, layar sentuh yang mudah digunakan, serta sistem BMS canggih dengan perlindungan arus berlebih ganda. Paket baterai ini mendukung laju pengisian/pengosongan cepat 1C, menawarkan pemasangan plug-and-play, dan bisa di paralel hingga 15 unit. Kompatibilitas inverter yang luas menjadikannya pilihan serbaguna untuk sistem energi surya.
Performance Characteristics
1. 5-inch touchscreen, offering intuitive operation and dear status visibility
2. BMS & Breaker two level over current protection
3. High charge/discharge ratesupporting safety 1C fast charge/discharge
4. Wall-mounted compact design, available in 5.12/10.24kWh capacities
5. Plug & Play battery interface
6. Flexibility scalable, with a maximum support of 15 units of parallel operation
7. Compatible with most solar inverter brands on the market
SPESIFICATIONS :
| MODEL | KLW 5100 |
|---|---|
| Electrical Characteristics | |
| Rated Voltage | 51.2 VDC |
| Cell Combination | 16S1P |
| Rated Capacity | 100 AH |
| Energy Storage | 5.12 kWh |
| Cycle Life | 6000 cycles @80% DOD, 0.5C |
| Charge/Discharge Standard | |
| Charge Voltage | 56 V |
| Max. Charge Current | 100 A |
| Max. Discharge Current | 100 A |
| Discharge Cut-Off Voltage | 43.2 VDC |
| Charge Cut-Off Voltage | 58.4 VDC |
| Environment | |
| Charge Temperature | 0°C to 50°C @60±25% Relative Humidity |
| Discharge Temperature | -20°C to 50°C @60±25% Relative Humidity |
| Storage Temperature | -20°C to 50°C @60±25% Relative Humidity |
| Mechanical | |
| Protection Grade | IP20 |
| Material System | LiFePO4 |
| Case Material | Metal |
| Installation | Wallmount |
| Pack Dimension L x W x H | 580 x 390 x 185 mm |
| Package Dimension L x W x H | 660 x 450 x 240 mm |
| Net Weight | 44 Kg |
| Gross Weight | 49 Kg |
| Communication | |
| Protocol | CAN/RS485/RS232 |
| Monitoring (Optional) | Bluetooth/WLAN |
| Certificates | |
| Pack | CE / UN38.3 / MSDS |
