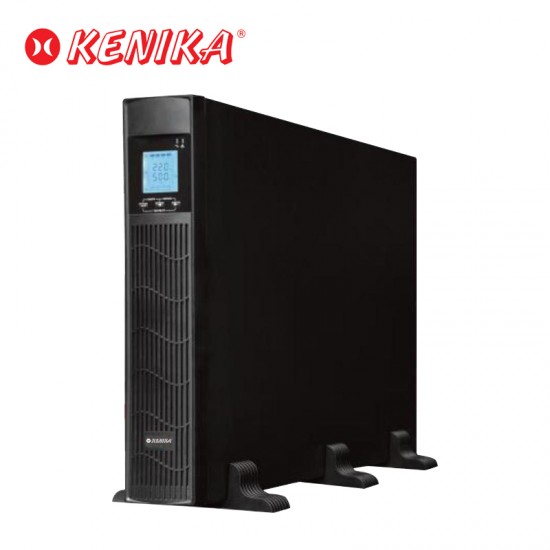

Kenika UPS True Online with Lithium Battery KLI-2000HC

Kenika UPS True Online with Lithium Battery KLI-2000HC
Free
Kenika UPS True Online with Lithium Battery KLI-2000HC
  • Stock: In Stock
  • Model: KLI-2000HC
  • Weight: 23.00kg
  • Dimensions: 54.50cm x 70.70cm x 20.10cm
190 samples sold
Product Views: 8741

Kenika UPS True Online with Lithium Battery KLI-2000HC adalah Smart UPS Pure Sinewave On-Line dengan range input voltage & frequency yang luas antara 110-300Vac, dan dengan range frequency 40~70 Hz.

Dengan teknologi kontrol DSP (Digital Signal Processor) sehingga output UPS stabil sesuai dengan setting pengguna (208/220/230/240 Vac). UPS ini menggunakan Battery Lithium Iron Phosphate yang memberikan daya tahan dan kinerja yang lebih baik, dengan efisiensi sistem hingga 90%.

Fitur proteksi dalam UPS ini sangat lengkap meliputi: Short Circuit Protection, Overload Protection, Over Temperature Protection, Battery Discharge Protection, dan Fan Testing Protection.

Terdapat juga fitur komunikasi data RS-232 Standard, USB, RS-485 dan tersedia slot SNMP (optional). Dengan display LCD dan LED memberikan informasi yang lengkap dan proses setting yang mudah.


Fitur:
1. Frekuensi tinggi On-Line dengan teknologi konversi ganda
2. Sistem kontrol berteknologi DSP (Digital Signal Processors)
3. APFC/Active Power Factor Correction, input power hingga 99%
4. Output power factor 0.9 ( 90%)
5. Input range voltage antara 110V ~ 300 Vac, dan range frekuensi (40~70 Hz)
6. Auto Sensing Frequency
7. 50/60 Hz konversi frequency
8. Cold start function
9. Proteksi Hardware dan software yang efektif


Specifications:

MODEL KLI-2000HC
Capacity 2kVA/1800W
INPUT
Rated Voltage 208/220/230/240 Vac
Voltage Range 110~176 Vac (Linear Derating Between 50% and 100% Load); 176~280 Vac (No Derating): 280 ~ 300 Vac (Derating 50%)
Frequency 40~70 Hz (Auto Sensing)
Power Factor ≥ 0.99
Bypass Voltage Range -25% ~ +15% (Settable)
Total Harmonic Distortion (THDi) ≤ 6%
OUTPUT
Voltage 208/220/230/240 Vac (Settable via LCD)
Voltage Regulation ± 1%
Frequency 45~55 Hz or 55~65 Hz (Synchronized Range); 50/60 Hz ± 0.1 Hz (Battery Mode)
Waveform Sinusoidal
Power Factor 0.9
Total Harmonic Distortion (THDv) ≤ 2% (Linear Load); ≤ 5% (Non-Linear Load)
Crest Factor 3:1
Overload 105% ~ 125% for 1 min, 125% ~ 150% for 30 s, > 150% for 300 ms
BATTERIES
Battery Type Lithium Iron Phosphate Battery
DC Voltage 51.2V
Inbuilt Battery 16×3.2 V / 12 Ah
Charging Current (Max.) 1A
Recharger Time Standard Model: 90% Capacity Restored in 10 Hours; Long Time Model: Depend on the Capacity of Battery
SYSTEM
Efficiency ≥ 91% (Mains Mode)
≥ 86% (Battery Mode)
≥ 96% (ECO Mode)
Transfer Time Mains Mode to Battery Mode: 0 ms
Inverter Mode to Bypass Mode: 4 ms (Typical)
Protections Short-Circuit, Overload, Over Temperature, Battery Discharge Protection and Fan Testing Protection
Communications RS232 (Standard), USB/RS485/Dry Contacts/SNMP (Optional)
Display LCD + LED
Standard EN 62040-1, EN 62040-2, EN 61000-3-2, EN 61000-3-3, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, IEC 61000-2-2, IEC 62040-2, IEC 62040-1
OTHERS
Operating Temperature 0°C ~ 40°C
Storage Temperature -25°C ~ 55°C (Without Batteries)
Relative Humidity 0 ~ 95% (Non-Condensing)
Altitude ≤ 1000 m, Derating 1% for Each Additional 100 m
IP Rating IP20
Noise Level at 1m ≤ 50 dB
Dimensions (W × D × H) 440 mm × 583 mm × 88 mm
Packaged Dimensions (W × D × H) 545 mm × 707 mm × 201 mm
Nett Weight 19 kg
Gross Weight 23 kg
