Paket Solar Home Basic 3000W PA-BAS3K dapat digunakan sebagai cadangan listrik saat terjadi pemadaman listrik PLN. Paketan ini dapat dicharge menggunakan PLN maupun Panel Surya.

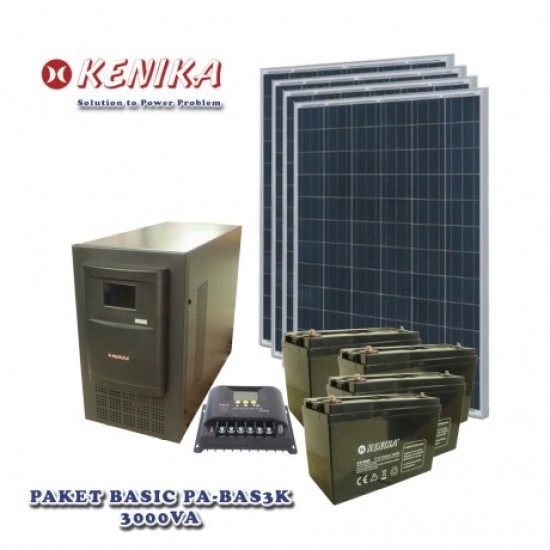

Paket Solar Home Basic 3000W PA-BAS3K terdiri dari:
• 1 pc Kenika UPS KC-3000 VA
• 1 pc Kenika Solar Charge Controller 50048
• 4 pcs Panel Surya Polycrystaline Kenika NPS200W
• 4 pcs Kenika Battery 121000 - 12V 100AH

KC-3000 VA Specifications:

MODEL	KC-3000 VA
Rated Capacity	2KW
DC Input Voltage	48VDC
Charge Current	≤15 Amp
AC Protection	Circuit Breaker
DC Protection	Fuse
Protection	Lightning, Short Circuit, Over Voltage, Low Voltage, Over Current, Over Load
LCD Indicators	Load Level/Battery Level, Battery, Utility Power, Output, Bypass, Overload, Fault/Buzzer
Audible Noise (at 1 Meter Distance)	≤50dBA
Communication Interface	RS232 (Optional)
INPUT
Voltage Range	220V/230V/240V/120V/100V±25%
Frequency Range	45Hz~65Hz
OUTPUT
Voltage Range	220V/110V±10% (AC Mode), 220V/110V±5% (Inverter Mode)
Frequency Range	50Hz/60Hz (Auto Sensing)
Wave Form	Pure Sine Wave
ENVIRONMENT
Operating Temperature	-15~40°C
Operating Humidity	10~90%, Non Condensing
WEIGHT
Unit	24kg
Packing	25kg
DIMENSION
Unit Size	467×218×352 mm
Packing Size	557×302×442 mm

50048 Specifications:

MODEL	50048 (SC-4850)
System Voltage	12V/24V, 24V/48V (Automatic Recognition)
Max. Input of Solar Panel	50V (12V/24V)100V (24V/48V)
Max. Charge Current	50A
Max. Discharge Current	50A
Battery Over Protection	16.5V/33V/66V
Voltage of Solar Panel	≤ 50V
Charge Type	PWM
Terminal Scale	28-10 AWG
Undervoltage Protection	10.7V/21.4V
Undervoltage Recovery	12.6V/25.2V
Floating Voltage	13.7V/27.4V
Terminal	>3# AWG (<25mm²)
Storage Temperature	-30⁰C ~ 70⁰C
Working Temperature	-20⁰C ~ 50⁰C
Humidity	≤90%
Open Circuit Current	<30 mA
Product Size	183 × 140 × 53 mm
Box Size	215 × 157 × 64 mm
Weight	650 gram

NPS200W Specifications:

Model	NPS200W
Electrical Characteristics
	STC	NOCT
Maximum Power (Pmax)	200Wp	147Wp
Maximum Power Voltage (Vmpp)	36.0V	33.3V
Maximum Power Current (Impp)	5.56A	4.41A
Open Circuit Voltage (Voc)	45.0V	42.4V
Short Circuit Current (Isc)	6.00A	4.84A
Power Tolerance (Positive)	5%
Module Efficiency STC	15.30%
Operating Temperature Range	-40°C to +85°C
Maximum System Voltage	1000V
Series Fuse Rating	15A
Temperature Coefficient of Isc	0.055 %/°C
Nominal Operating Cell Temperature (NOCT)	45±2℃
Mechanical Characteristics
Cell Type	Polycrystalline 156×156 mm
Cell Number	72 (6×12)
Dimensions (mm)	990×1320×35
Weight (kgs)	21
Front Glass	3.2 mm, High Transmission, Low Iron,Tempered Glass
Frame Type	Anodized Aluminium Alloy
Junction Box Protection Class	IP67 Rated
Connector Type	MC4
Output Cables	Optional

12V 100AH Specifications:

MODEL	12V 100.0AH
Nominal Voltage	12V
Rated Capacity	100.0Ah
Terminal	T6
Dimension	32.9 × 17.2 × 21.7 cm
Weight	28kg
