Name: Paket DIY PLTS 3600W PA-H3600
Brand: Kenika
Availability: InStock

Free

Paket DIY PLTS 3600W PA-H3600

Stock: In Stock
Model: PA-H3600
Weight: 1,700.00kg
Dimensions: 0.00cm x 0.00cm x 0.00cm

Kenika

190 samples sold

Product Views: 10446

0 reviews - Write a review

Buy Now Ask Question

Add to Wish List Compare this Product

More from this brand

Quickview

Kenika UPS KZ-600 VA

Rp0.00

Ex Tax:Rp0.00

Add to Wish List Compare this Product

Quickview

Kenika UPS KS-600 VA

Rp0.00

Ex Tax:Rp0.00

Add to Wish List Compare this Product

Quickview

Kenika UPS KS-1200 VA

Rp0.00

Ex Tax:Rp0.00

Add to Wish List Compare this Product

Quickview

Kenika UPS KS-2000 VA

Rp0.00

Ex Tax:Rp0.00

Add to Wish List Compare this Product

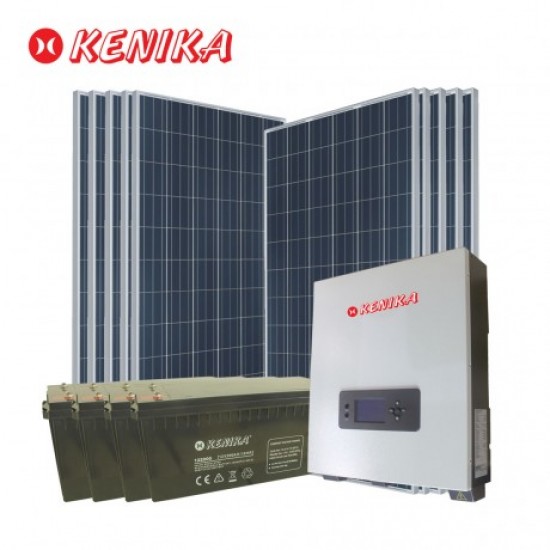

Paket DIY PLTS 3600W PA-H3600 terdiri dari:
• 4pcs Kenika Battery 122000 - 12V 200AH
• 20pcs Panel Surya Policrystalline Kenika NPS320W
• 1pc Kenika Solar Hybrid On-Grid Bi-Direction Inverter EAH 3.6KW

EAH 3.6KW Specifications:

MODEL	EAH-3.6 KW
Rated Power	3600W
Operating Mode	Flexible Setup via Upper Computer Software or LCD Interface
PV INPUT
Max. Input Power	4500W
Rated Input Voltage	360Vdc
Max. Input Voltage	500Vdc
Start-up Voltage	115Vdc
Initial Feeding Voltage	150Vdc
MPPT Voltage Range	250Vdc ~ 450Vdc
Max. Input Current	18A
PV Short Circuit Current	18A
Number of MPPT	1
BATTERIES
Battery Type	LFP Battery
Rated Voltage	51.2Vdc
Voltage Range	46.4Vdc ~ 57.6Vdc
Battery Type	VRLA AGM Maintenance–Free Battery
Rated Voltage	48Vdc
Voltage Range	40Vdc ~ 58Vdc
Battery Capacity	100Ah ~ 120 Ah Optimized
Max. Charger Power	1425W
Max. Charge Current	25A (5A/10A/15A/20A/25A Settable)
Charging Curve	3-Stage
Max. Charge Efficiency	94%
Rated Discharge Power	2000W
Max. Discharge Current	100A
Max. Discharge Efficiency	94%
AC OUTPUT
Rated Output Power	3600VA/3600W
Rated Output Voltage	230Vac (208/220/240 Settable)
Rated Output Current	15.6A (17.3A/16.4A/15A)
Output Voltage Range	170Vac ~ 280Vac
Rated Output Frequency	50Hz/60Hz
Output Frequency Tolerance	50 ± 5Hz / 60 ± 5Hz
Power Factor	0.8 Leading ~ 0.8 Lagging
THD	≤ 3%
EPS OUTPUT
Rated EPS Power	2000VA/2000W
Rated EPS Voltage	230Vac (208/220/240 Settable)
Rated EPS Current	8.7A (9.6A/9.1A/8.3A)
EPS Voltage Range	184Vac ~ 264.5Vac
Rated Frequency	50Hz/60Hz
Frequency Precision	± 1%
Voltage Precision	± 1%
Transient Recovery Time	≤ 40ms
Crest Factor	3:1
Linear Load Waveform Distortion	≤ 3%
Short Circuit Current	45A (100ms)
TRANSFER TIME
EPS Mode → On-Grid Mode	0ms
On-Grid Mode → EPS Mode	10ms
EFFICIENCY
MPPT Efficiency	99%
Max. PV Efficiency	96%
GENERAL DATA
Dimensions (W × H × D) (mm)	410 × 470 × 123
Weight (kg)	14.4
Communications	USB/RS485/SNMP (Optional)
IP Rating	IP20
Operating Temperature	0°C ~ 40°C (> 40°C Derating)
Max. Relative Humidity	0 ~ 90%
Max. Altitude	< 1000m (> 1000m Derating)
Cooling	Forced Ventilation
Buzzer	LED, Buzzer
Display	LED, LCD
Noise	≤ 50dB
Topology	Transformerless

NPS 320W Specifications:

Model	NPS320W
Electrical Characteristics
	STC	NOCT
Maximum Power (Pmax)	320Wp	235Wp
Maximum Power Voltage (Vmpp)	36.0V	33.3V
Maximum Power Current (Impp)	8.89A	7.06A
Open Circuit Voltage (Voc)	45.0V	42.4V
Short Circuit Current (Isc)	9.60A	7.79A
Power Tolerance (Positive)	5%
Module Efficiency STC	16.66%
Operating Temperature Range	-40°C to +85°C
Maximum System Voltage	1000V
Series Fuse Rating	15A
Temperature Coefficient of Pmax	-0.44%/°C
Temperature Coefficient of Voc	-0.33%/°C
Temperature Coefficient of Isc	0.055%/°C
Nominal Operating Cell Temperature (NOCT)	45±2℃
Mechanical Characteristics
Cell Type	Polycrystalline 156×156 mm
Cell Number	72 (6×12)
Dimensions (mm)	990×1940×45
Weight (kgs)	22.00
Front Glass	3.2 mm, High Transmission, Low Iron,Tempered Glass
Frame Type	Anodized Aluminium Alloy
Junction Box Protection Class	IP67 Rated
Connector Type	MC4
Output Cables	4mm², Length: 900mm

12V 200AH Specifications:

MODEL	12V 200.0AH
Nominal Voltage	12V (6 Cells in Series)
Rated Capacity	200.0Ah (C₁₀, 1.80V/cell)
Dimension	Length: 522±3 mm Width: 238±3 mm Height: 218±3 mm Total Height: 221±3 mm
Nominal Capacity @25°C (Ah)	20 Hour Rate (10.72A to 10.8V): 214.4Ah 10 Hour Rate (20.20A to 10.8V): 202.0Ah 5 Hour Rate (34.58A to 10.8V): 172.9Ah 1 Hour Rate (126.6A to 10.8V): 126.6Ah
Approx. Weight	55.5kg
Terminal	T13
Max. Discharge Current	1300A @25°C (5s)
Internal Resistance	3.5mΩ @25°C (Full Charge Battery)
Floating Design Life	10 Years @25°C
Ambient Temperature	Charge: –15°C ~ 50°CDischarge: –20°C ~ 60°CStorage: –20°C ~ 50°C
Container Material	A.B.S, UL94–HB, UL94–V0, Optional
Self Discharge	VRLA batteries can be stored for more than 6 months at 25°C. Self–Discharge ratio less than 3% per month at 25°C. Please charge batteries before using.
