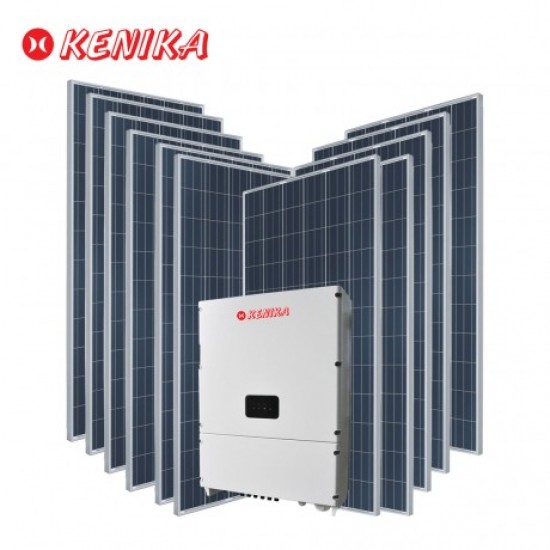

Name: Paket Murah DIY PLTS 33KW 3 Phase PA-N3303
Brand: Kenika
Availability: InStock

Paket Murah DIY PLTS 33KW 3 Phase PA-N3303

Free

Paket Murah DIY PLTS 33KW 3 Phase PA-N3303

Stock: In Stock
Model: PA-N3303
Weight: 6,555.00kg
Dimensions: 0.00cm x 0.00cm x 0.00cm

Kenika

190 samples sold

Product Views: 8526

0 reviews - Write a review

Buy Now Ask Question

Add to Wish List Compare this Product

More from this brand

Quickview

Kenika UPS KZ-600 VA

Rp0.00

Ex Tax:Rp0.00

Add to Wish List Compare this Product

Quickview

Kenika UPS KS-600 VA

Rp0.00

Ex Tax:Rp0.00

Add to Wish List Compare this Product

Quickview

Kenika UPS KS-1200 VA

Rp0.00

Ex Tax:Rp0.00

Add to Wish List Compare this Product

Quickview

Kenika UPS KS-2000 VA

Rp0.00

Ex Tax:Rp0.00

Add to Wish List Compare this Product

Paket Murah DIY PLTS 33KW 3 Phase PA-N3303 terdiri dari:
• 1 pc Inverter Kenika Solar On-Grid Inverter EA3N 33KW 3 Phase
• 81 pcs Panel Surya 320WP/36V NPS320W Polycrystaline

EA3N 33KW Specifications:

MODEL	EAN 33KW
INPUT (DC)
Max. DC Input Power	33kWp
Max. DC Input Voltage	1000V
Starting Voltage	200V
Max. DC Input Current	3 × 23A
MPP Voltage Range	320 ~ 900V
Full—Load MPP Voltage Range	480 ~ 800V
Number of MPP Inputs	3
Rated DC Input Voltage	620V
DC Terminals	2×6
MPPT Efficiency (Static)	>99%
Withstanding Voltage & Insulation for DC Input Against the Enclosure	Basic Insulation 3000Vdc/1 min
OUTPUT (AC)
Rated Output Power	30KW
Max. Apparent Power	33KVA
Rated Output Voltage	3 × 380/400/415Vac +N+PE
Rated Output Current	3 × 45.9A
Max. Allowable Output Current	3 × 48A
Rated Frequency	50Hz/60Hz
DC Component	<0.5% (Rated Current)
THD	<3% (Rated Power)
Power Factor	0.8 Leading ~ 0.8 Lagging
Withstanding Voltage & Insulation for AC Output Sides Against the Enclosure	Basic Insulation 3000Vdc/1 min
EFFICIENCY
Max. Inverter Efficiency	98.7%
Europe Efficiency	98.4%
PROTECTIONS
Input Reverse Connection Protection	Yes
DC Input Switch	Yes
DC Overvoltage and Overload Protection	Yes
Output AC Short—Circuit Protection	Yes
AC Overload, Overcurrent Limitation and Protection	Yes
Grid Over/Under—Voltage and Unbalanced Protection	Yes
Grid Over/Under—Frequency Protection	Yes
Leakage Protection	Yes
Lightning Protection	Yes
Islanding Protection	Active and Passive Protection
DC Surge Protection	Yes
AC Surge Protection	Yes
Insulation Resistance Detection Protection	Yes
CERTIFICATES AND APPROVALS
Certificates	VDE/TUV/CE/CQC
Grid—Connected Standard	TUV/VDE—AR—N—4105/G59/IEC 61727:2004/IEC 62116:2014/IEC61683:1999
EMC/Safety	EN 61000—6—2, EN 61000—6—3, EN 61000—3—2, EN 61000—3—3, EN 61000—3—11, EN 61000—3—12, EN/IEC 62109—1, EN/IEC 62109—2
DISPLAY AND COMMUNICATIONS
Display	LED/LCD/APP
RS-485	Yes
USB	Yes
PLC	Optional
APP and Bluetooth	Yes
OTHERS
Standby Loss	<15W
Topology	Transformerless
MTBF	40000h
Operating Temperature	—25°C ~ +60°C
Cooling	Natural Cooling
Relative Humidity	0~100% Non—Condensing
IP Rating	IP65
Max. Operating Altitude	3000m
Dimensions (W×D×H) (mm)	255×580×820
Packaged Dimensions (W×D×H) (mm)	690×935×365
Net Weight (kg)	68
Gross Weight (kg)	70

NPS30W Specifications:

Model	NPS320W
Electrical Characteristics
	STC	NOCT
Maximum Power (Pmax)	320Wp	235Wp
Maximum Power Voltage (Vmpp)	36.0V	33.3V
Maximum Power Current (Impp)	8.89A	7.06A
Open Circuit Voltage (Voc)	45.0V	42.4V
Short Circuit Current (Isc)	9.60A	7.79A
Power Tolerance (Positive)	5%
Module Efficiency STC	16.66%
Operating Temperature Range	-40°C to +85°C
Maximum System Voltage	1000V
Series Fuse Rating	15A
Temperature Coefficient of Pmax	-0.44%/°C
Temperature Coefficient of Voc	-0.33%/°C
Temperature Coefficient of Isc	0.055%/°C
Nominal Operating Cell Temperature (NOCT)	45±2℃
Mechanical Characteristics
Cell Type	Polycrystalline 156×156 mm
Cell Number	72 (6×12)
Dimensions (mm)	990×1940×45
Weight (kgs)	22.00
Front Glass	3.2 mm, High Transmission, Low Iron,Tempered Glass
Frame Type	Anodized Aluminium Alloy
Junction Box Protection Class	IP67 Rated
Connector Type	MC4
Output Cables	4mm², Length: 900mm
