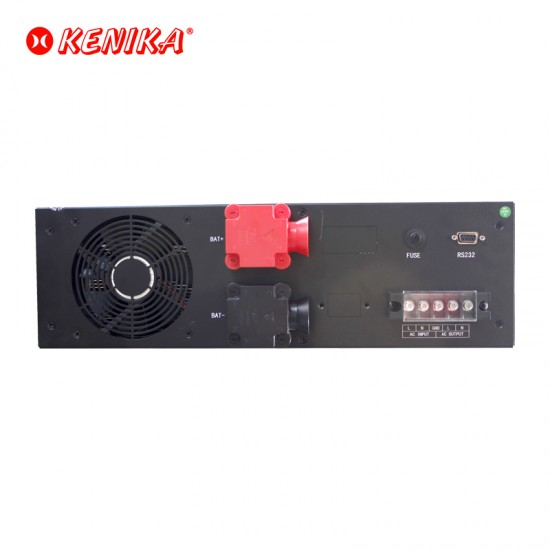

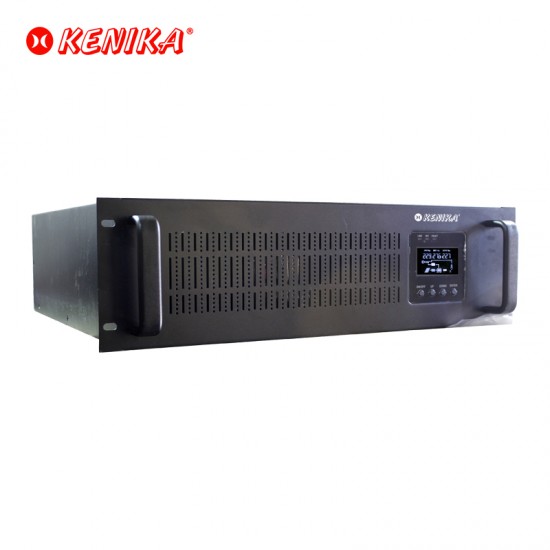

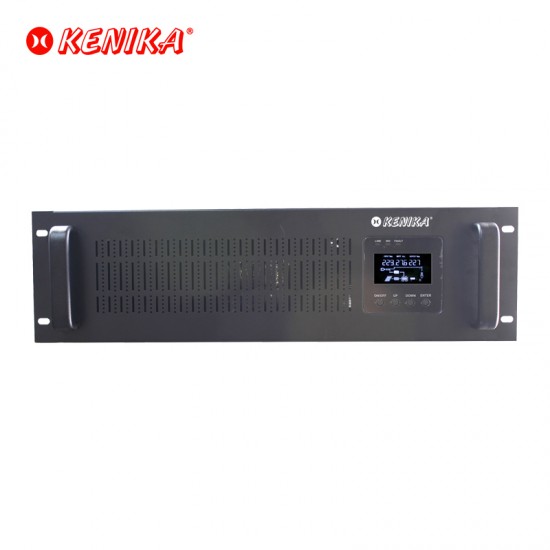

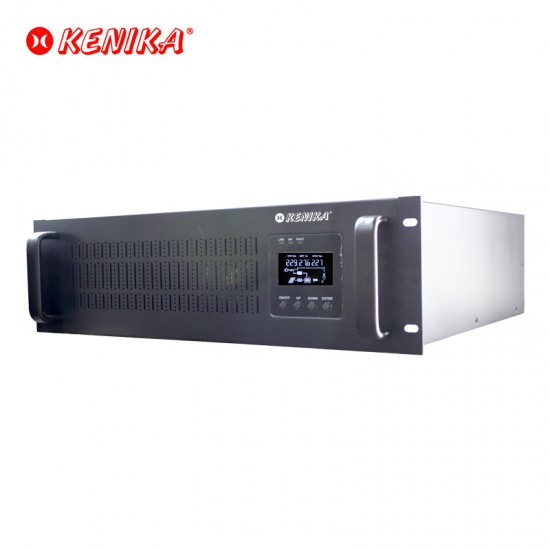

Kenika Power Inverter Rackmount 2000W Offline KCT-RUL2K12
- Stock: In Stock
- Model: KCT-RUL2K12
- Weight: 18.70kg
- Dimensions: 55.50cm x 55.00cm x 22.30cm
190 samples sold
Product Views: 3043
More from this brand
RUL series power inverter is a stand-alone inverter capable of converting DC power source into a pure sine wave AC output. It is designed to be highly reliable and efficient, with advanced features such as automatic voltage regulation, overload protection, and remote monitoring. It is usually used in telecommunications applications when reliable and uninterruptible power is critical, such as data centers, telecom networks, and remote communication stations.
FEATURES:
- Built-in Toroidal Transformer
- Wide input voltage range
- Auto restart while AC is recovering
- Boost and Buck AVR for Voltage Stabilization
- Cold Start Function
SPECIFICATIONS:
| MODEL | KCT-RUL2K12 |
| Rated Power | 2000W |
| AC INPUT | |
| Voltage Range | 220VAC (±25%) |
| Frequency Range | 50Hz/60Hz ± 2.5Hz (Auto Sensing) |
| OUTPUT | |
| Voltage Range | 220VAC (AC Mode ± 10%, Battery Mode ± 5%) |
| Frequency | 50Hz/60Hz ± 0.5Hz (Auto Sensing) |
| AC Efficiency | 93% |
| Harmonic Distortion | Linear Load <3%, Non-Linear Load <5% |
| Overload Capacity | 110% ≥ 60s, 120% ≥ 10s |
| Crest Factor | 3:1 |
| Waveform | Pure Sine Wave |
| Transfer Time | 4ms/8ms (Optional) |
| BATTERY | |
| Type | Fully Sealed Maintenance-Free Load Acid Battery |
| Voltage | 12VDC |
| Charging Current | 4-20A (Adjustable) |
| LCD | |
| Display | LCD+LED |
| Content | Input/Output Voltage, Battery Voltage, Battery Capacity, Load Capacity, Working Mode, Frequency |
| PROTECTION | |
| Battery Reversal | Optional |
| High AC Voltage | Turn off AC, transfer to inveter mode automatically |
| Low DC Voltage | Inverter shut down automatically, Once the AC recover, Inverter turn on and charge automatically |
| Output Short Circuit | AC mode: Jump Fuse; Inverter mode: Shut down |
| Over Temperature | Inverter will alarm and turn off output but it will recover to normal state after cooling down |
| SYSTEM | |
| Protection Grade | IP20 |
| Software Interface | Windows9x, 2000, NT, ME, XP, Linux, Novell, MacOSx, NT4.0 |
| ENVIRONMENT | |
| Humidity | 15-93% (No Condensation) |
| Temperature | -10°C ~ 50°C |
| Altitude | ≤ 3000m |
| COMMUNICATION | |
| Communcation Interface | RS232 Standard, USB/RS485/SNMP (Optional) |
| PHYSICAL | |
| Product Dimension (D×W×H) |
483×420×132mm |
| Box Dimension (D×W×H) |
555×550×223mm |
| Nett Weight | 16.7kg |
| Gross Weight | 18.7kg |
| Application | Suitable for Rackmount Server System Power Backup |
Notes: 1U = 44.45mm
